| Loạt: | AMP SIÊU DẤU 1.0 | Ghim: | 26 Ghim |
|---|---|---|---|
| Số phần nữ: | 3-1437290-7 | Nam Phần Không.: | 9-6437287-8 |
| Vật liệu: | Vỏ PA66+GF, đầu nối bằng đồng đóng hộp/mạ vàng | Phạm vi nhiệt độ: | -40℃~+125℃ |
| Đánh giá chống thấm nước: | IP65 | ||
| Làm nổi bật: | 2 Rows Automotive ECU Connector,6473711-1 Automotive ECU Connector,7-Slots Automotive ECU Connector |
||

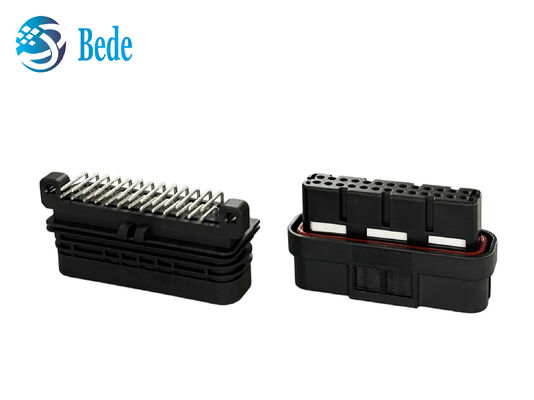

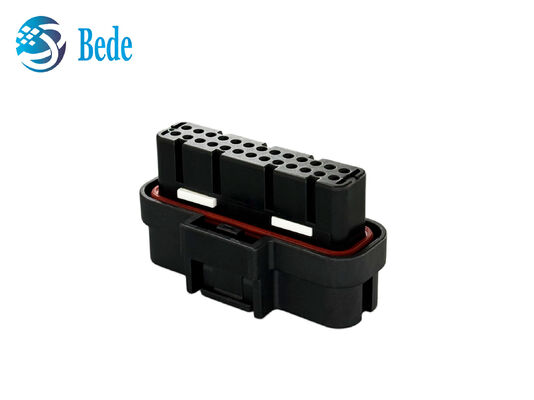

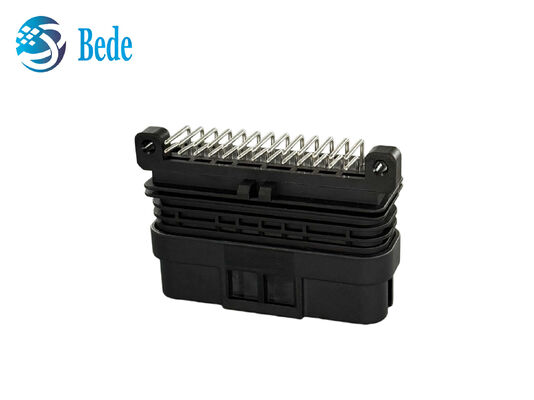

TE/AMP SUPERSEAL 1.0 26-pin automotive connector is a high-reliability solution for vehicle ECUs. It consists of a wire-side female plug (with an orange silicone seal and lock) and a PCB-side 26-right-angle-pin male header (with mounting fixtures), designed to withstand harsh environments and ensure stable signal/power transmission.
| Component | Features | TE Part Number | Specification |
|---|---|---|---|
| Female Housing (Wire Side) | Black PA66+GF/PBT+GF, orange silicone seal, 26-hole 2*13 matrix, latch | 1473712-2 | Wire-to-board, IP67 |
| Male Header (PCB Side) | Black PA66+GF/PBT+GF, 26-pin vertical pins, mounting holes | 6473711-1 | PCB solder type |
| Pin Count | 26Pin | - | Multi-signal & power |
| Protection | Integrated seal + latch | - | IP67 waterproof |
| Material | PA66+GF/PBT+GF; tinned/gold-plated copper alloy (brass/phosphor bronze) | - | High conductivity, anti-oxidation |
| Temp Range | -40℃ to 125℃ | - |
Solder the male header to the controller's PCB using its mounting fixtures; crimp the female plug to the automotive wiring harness, then lock it with the male end for a secure seal.
Do not disassemble the seal structure to maintain IP67 protection; ensure correct alignment during docking to avoid pin damage; use within the rated temperature range (-40℃~125℃); keep terminals clean during installation to prevent poor contact.
